Microfluidic Chip Manufacturing for Point-of-Care Diagnostics: PMMA-to-PMMA Bonding at Production Scale
- 16 hours ago
- 3 min read
Micromolds supported the industrialization and optimization of a microfluidic chip manufacturing process for a next-generation point-of-care diagnostic system. The device is designed to deliver rapid, lab-quality results from small-volume samples in decentralized environments.
This project demonstrates Micromolds' capability to translate microfluidic designs into stable, manufacturable components while maintaining micron-level precision, repeatability, and process control.
Project Requirements
The chip architecture imposed strict technical requirements:
Microchannel geometry with tight dimensional tolerances and no draft radius compensation
Optical clarity for accurate signal detection, including in bonding-affected regions
Dimensional stability after bonding
PMMA-to-PMMA bonding without microchannel deformation
At this scale, tool design, microchannel size and density, combined with material processing conditions, can result in incomplete filling, air entrapment, or dimensional deviation.
Engineering Approach
Micromolds aligned the design with manufacturing constraints from the earliest stages. Key activities included:
Development of high-precision tooling using diamond-tipped cutters and advanced CNC micro-milling for accurate microchannel replication
Design-for-manufacturing (DfM) adjustments to improve polymer flow and demolding behavior
Material selection based on optical, mechanical, and bonding requirements
Validation of molding and bonding process parameters to ensure dimensional control
Sample approval with the client prior to production transition
Process conditions were optimized to manage polymer flow, thermal gradients, and cavity filling behavior, all critical for reliable microfeature replication. At micro-scale, flow imbalance between thick sections and microchannels can cause hesitation effects, making geometry and process alignment essential for complete filling.
PMMA-to-PMMA bonding required the development of a new technological process. The key challenge was achieving a strong, optically clear bond without collapsing microchannel geometry, a common failure mode with standard thermal bonding approaches. The developed process delivers fast cycle times, preserves microchannel geometry, and is cost-efficient for large-volume production.
Transitioning Microfluidic Chip Manufacturing to Production Scale
Following process validation and sample approval, the design was transferred to injection molding production. Tool surface quality was maintained using diamond-tipped cutters and CNC micro-milling to meet the optical transmission requirements of the detection zone. Standard process controls ensured dimensional stability through the full production cycle:
Shrinkage and warpage compensation to maintain microchannel tolerances
Demolding optimization to prevent feature distortion on thin-wall geometries
Bonding process alignment to preserve channel integrity at production volumes
Process Stability and Repeatability
Production performance was achieved through controlled and repeatable processing conditions. Key factors included:
Stable temperature and injection parameters
Precision tooling and surface quality control
Effective venting and air evacuation
Continuous monitoring of feature replication
Bonding process parameter control to ensure consistent channel integrity across batches
Manufacturing Outcome

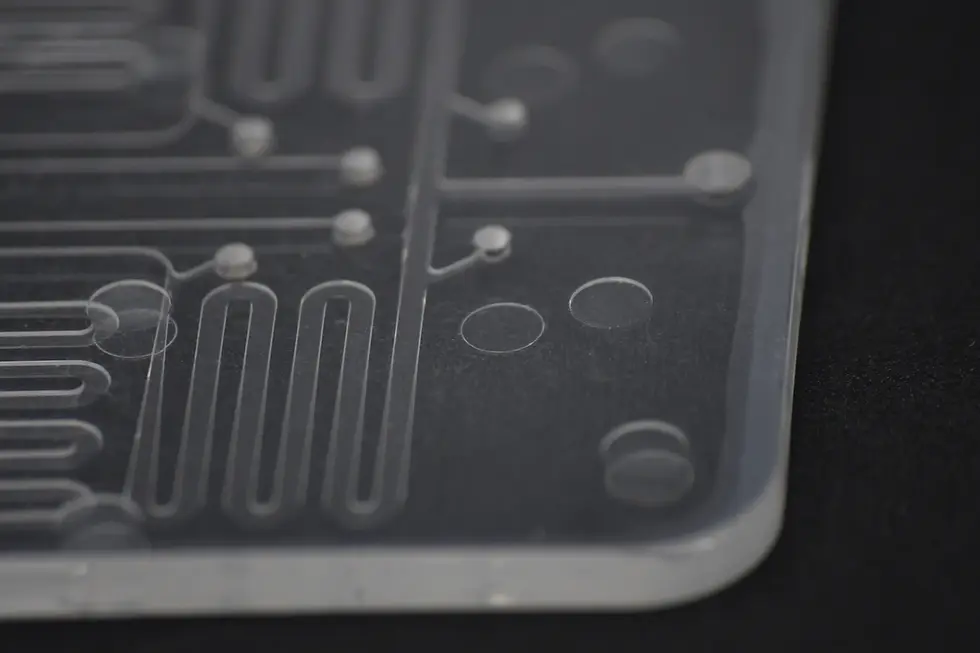

The result was a stable and repeatable process capable of producing a PMMA-based microfluidic chip at production scale.
Micromolds achieved reliable replication of micro-scale features while maintaining the dimensional stability required for bonding and device performance. The established process enabled:
Consistent feature replication across batches
Reduced defect rates
Stable production window
Predictable manufacturing output
The design was successfully transferred into production without redesign, supporting integration into a commercial diagnostic system.
Bring Your Microfluidic Device to Production
Micromolds supports companies developing microfluidic devices that require precise and reliable manufacturing. If your project is moving from prototyping to production, manufacturability must be evaluated early to avoid redesign and ensure stable output.
Check if your microfluidic chip design is manufacturable before committing to tooling.
Frequently Asked Questions
What microchannel geometries can you manufacture?
We work with a range of microchannel geometries, including straight channels, serpentine paths, and chamber-based architectures. Channel dimensions, wall thickness, and aspect ratios all affect filling behavior and demolding — we evaluate these early to flag any risks before tooling.
Does channel geometry affect microfluidic chip bonding?
Yes. Channels with very thin walls or high aspect ratios are more susceptible to deformation during bonding. Our bonding process was specifically developed to preserve microchannel geometry, but geometry review is part of our standard DfM process.
What are the minimum feature sizes in microfluidic chip manufacturing?
We replicate features in the range of tens to hundreds of microns. The practical minimum depends on aspect ratio, material, and channel density. If you're unsure whether your design is within range, our engineering team can assess it before you commit to tooling.
Can you work with designs that weren't originally intended for injection molding?
Yes — this is common. Designs created for soft lithography or machined prototypes often need DfM adjustments for injection molding. We identify and resolve these issues during the engineering phase.
When should I involve a manufacturer in microfluidic chip development?
As early as possible. Geometry changes after tooling are costly. Involving us at the design stage avoids redesign and accelerates the path to production.
